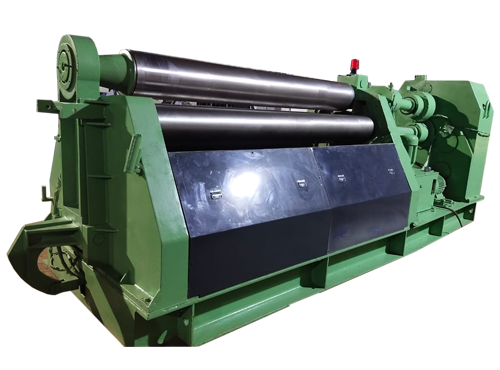

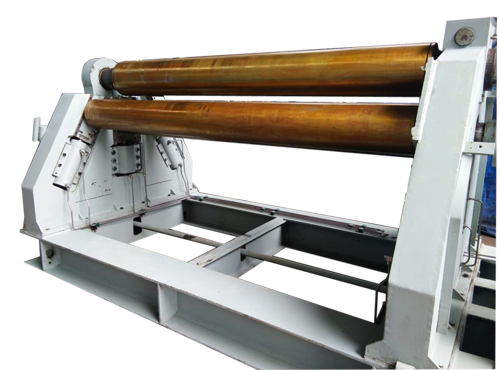

Four Roll Linear Axis hydro Manual Bending or Rolling Machine

Hydro Manual Four Roll Linear Axis Bending or Rolling Machine – (Model No. 4R----LAHM)

The machine is most economical model among all plate bending machine and is most useful for small fabrication shop.

❮ ❯

Advantages

Specially developed low-cost, economical manual operated machine with motorized roll rotation; a perfect machine for engineering workshops
Since all rolls are mounted in roller bearings, the electrical consumption is reduced by 50% compared to conventional pyramid type machines
Ideal for small engineering workshops looking to invest less while still automating rolling
Open type rolling suitable for mass production quantities
Can perform multiple operations such as pre-bending, rolling, material straightening, conical rolling, and section rolling in a single machine

Special Features

The machine frame is fabricated from all tested steel plate material. A Die Penetration test is carried out on all weld joints to ensure sound weld quality This frame is subjected to stress relieving, sand blasting and epoxy primer painted for corrosion free long lasting machine life.( Primer paint 160 DFT) The complete body frame is machined in CNC machine to achieve built.

A tilt able control desk is conveniently located on machine. The main panel start / stop buttons and roll rotation fucntion (Reverse / forward) is provided on the same. The Top roll left side position and right side position are indicated separately by four digital meters.

A specially designed & built mechanism allows drop end frame to tilt down in horizontal position without much efforts (one person can perform job). No need to dismantle frame from main body like in conventional machine. The top roll can be tilted to great degree of inclination making it most convenient and ease to remove rolled shells without any difficulty.

All our machine rolls are mounted in heavy duty roller bearings. Each roller is fitted with two bearing per side (four bearing per roller)

A dual cone bending device can be provided as shown. The attachment provided between bottom rolls is suitable for narrow cone diameter. The attachment to be fitted on a main frame is suitable for cone having wide angle.

An extended rolls can be provided for mounting dies to roll different sections like angle, channel, beam, pipe or flat etc.

Tilt able top roll makes it more convenient to remove rolled shell with easeTilt able top roll makes it more convenient to remove rolled shell with ease.

Standard Featues

Both the bottom rolls are driven rolls
All rolls are manufactured in alloy steel material
Separate digital roll position meter for each side of roll makes it easy to maintain parallelism between top and bottom roll
Manually operated drop end frame tilting for ease of job removal

Optional Featues

All 3 rolls positively driven for thin material rolling
Hardened rolls up to 52–55 RC
Tiltable top roll for ease of removal of duly rolled shells
Cone bending arrangement between bottom rolls for smaller diameter cone rolling
Extra heavy cone bending arrangement on frame for bigger diameter cone rolling
Magnetic base electrical pendant for all-around access to operator
PLC controls for automatic bending and rolling
Extended shaft for section rolling die mounting for rolling of sections like angle, channel, beams, flats, pipes, bars, etc.
Sinking type reference plate for initial reference while feeding the plate inside the machine
Feeder table
